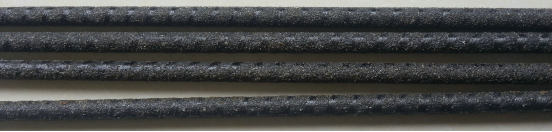

Pulwell CFRP rebars and tapes are made of high strength carbon fiber and epoxy resin, which can provide superior tensile strength, shear strength and modulus。

Pulwell CFRP rebars and tapes are typically used to strengthen  existing structural members (concrete, wood, stone or masonry) in flexural and shear. Structures, which are deficient due to either a structural flaw, deterioration or because of a change in use can often be brought to a useful capacity using Pulwell series CFRP rebars.

Due to their extremely high strength and stiffness, along with the fact that theywill not rust or corrode and are very light weight, Pulwell CFRP rebars and tapes are often added to the concrete cover of  an  existing structure using a technique called “Near Surface Mount”  or NSM strengthening. The method is analogous to adding “band aid” rebar to the structure.

When combined with a proprietary factory applied anchorage, the CFRP rebars can be used as pre- stressing or un- bonded post tension tendons or earth anchors.

Occasionally, the CFRP rebars are used as traditional concrete reinforcing bars, typically in restoration or repair situations.

Benefits of  Pulwell CFRP Rebars and Tape

• Impervious to Chloride Ion and chemical attack ~ Will NOT Corrode
• Tensile strengths greater than steel
• Modulus approaching that of steel & much greater than GFRP
• Can withstand greater sustained loads
• 1/5th  the weight of steel rebar
• “Consumable” by excavating equipment
• Much higher bond strength with concrete than steel ,by external
helical wrap along with a sand coating of CFRP rebar, as well as
peel-ply rough surface of CFRP Tape

Pulwell CFRP Rebars and Tape Can be Used in the Below Applications

Near Surface Mount (NSM) Structural Strengthening
•   Bridge Decks & Railings
•   Floor Slabs
•   Columns
•   Crack Stitching & Adjoining Members

Pre-stressing and Post-tensioning
•   Pre- stress Tendons in Corrosive Applications
•   Precast Bridge Deck Panels
•   Concrete Poles & Marine Pilings
•   Un- bonded Post Tensioning
•   Post Tensioning of Precast Members
•   King Post Arrangement for Floor Slabs
•   Replacement of Corroded Steel Tendons

Active Earth Anchors & Tie Backs
•   Deep Foundations with Encroachment Issues
•   “Consumable” & Doesn’t Affect Adjacent Land Use
•   Slope Stabilization
•   Mining & Tunneling
•   Waterfront Construction

Concrete Susceptible to Corrosion
•   Repair Situations
•   Inadequate Concrete Cover
•   Historic Preservation

Masonry Strengthening


High Modulus or Hybrid fiber products or custom sizes are available.

Contact Pulwell for more information
